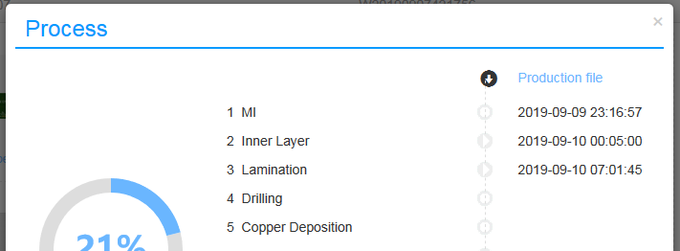

I see that @JLCPCB now give you an option to download the "production" files.

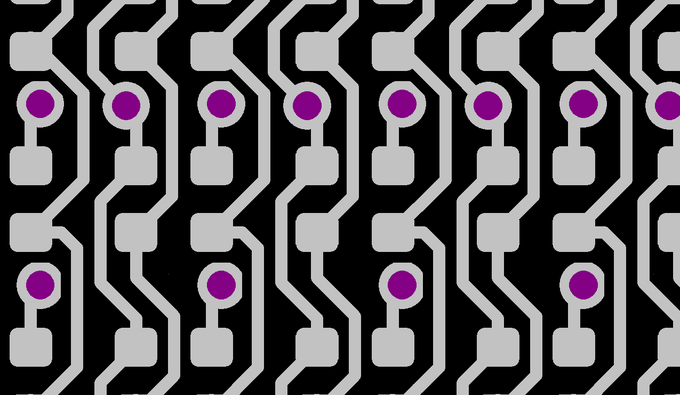

These are the actual gerbers that they use to manufacture the PCB. In order to improve yield clearances are increased. Pretty cool that you can actually download and see these files.
Fun feature of KiCad. It's very easy to modify footprints separately in the PCB layout.
This pin is an NC, to ease routing I just removed the pad. ^_^

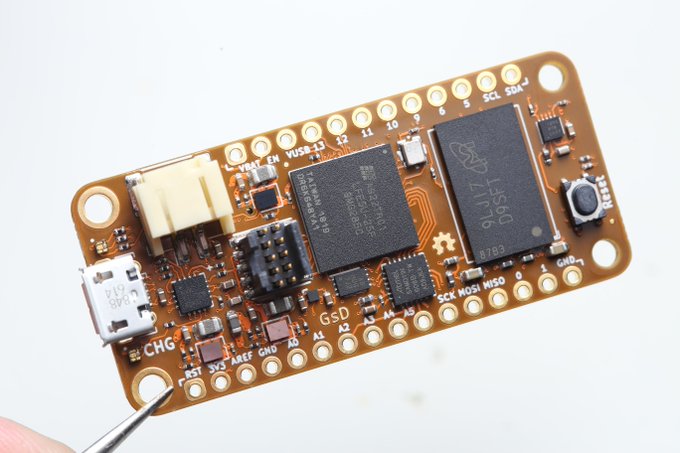

The OrangeCrab!
A Lattice ECP5 based FPGA mini development board in a Feather form factor with DDR3 memory is now a physical thing!
I guess it could be useful to know if it works. 😂
