Almost finished!

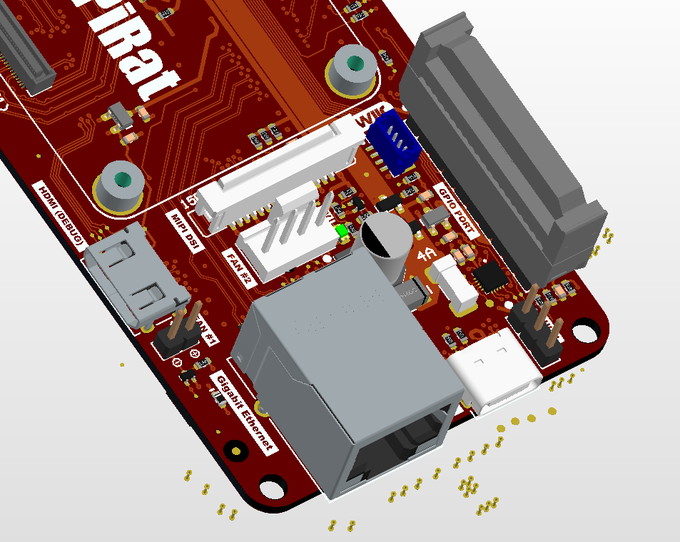

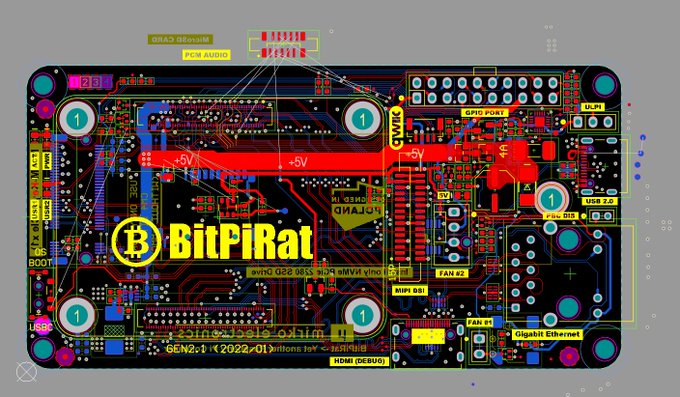

I'm working so hard to finish this revision (gen2.1).

New features in this revision:
- dedicated connector for user front-panel with UI features such as: LCD display, touch screen, buttons, LEDs, joystick,
- unique push-button controller (PMIC) for power on/off.

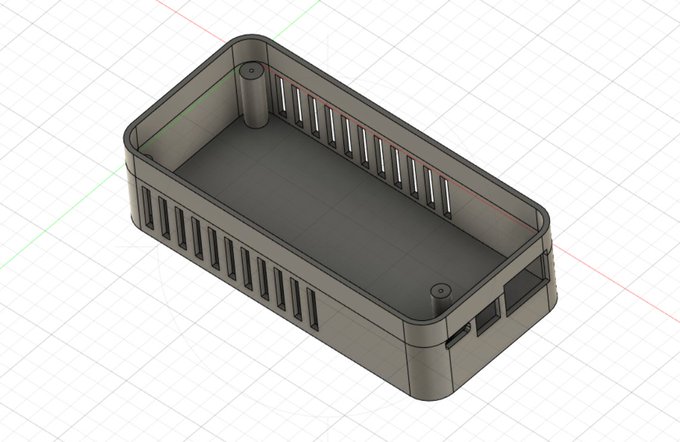

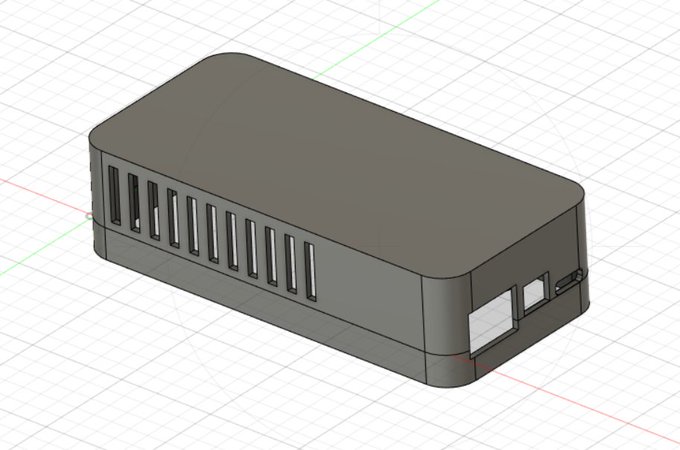

OK, it seems that the plastic enclosure design (rev1) is finished (included Geekworm heatsink supported)

my first enclosure project in Fusion360

Here you can download the 3D STEP file for #MirkoPC R1.1:
https://t.co/WlT9Jq9PlR

In a few days will be available also the STL model of dedicated enclosure for 3D printer (my colleague supports me in this topic).

#MirkoPC REV1.1 today released.
The project is already during manufacturing and assembly.

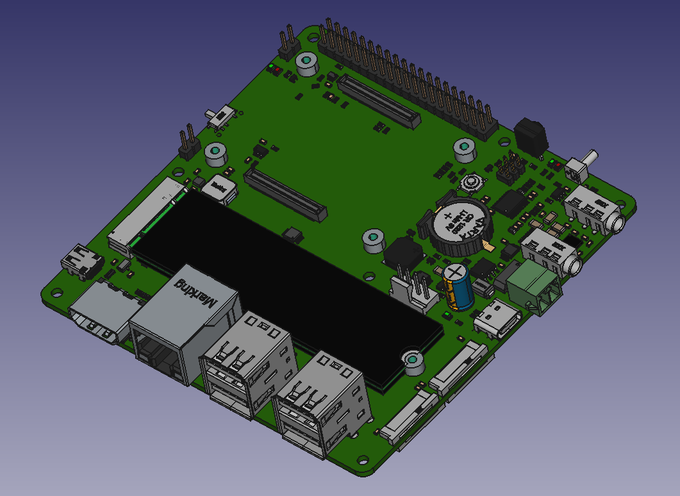

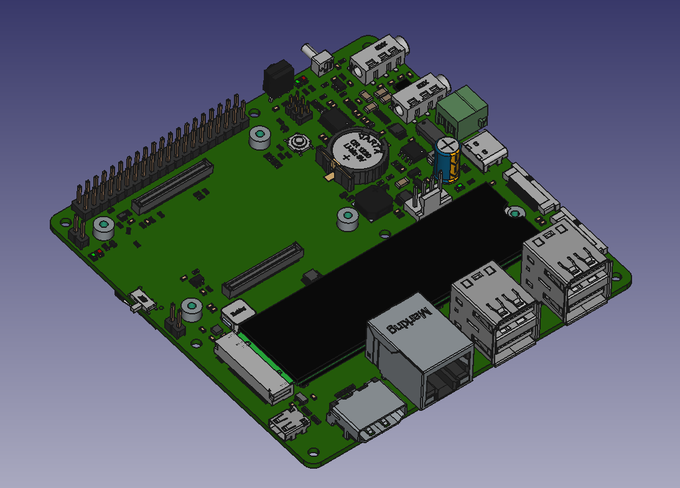

Main features and updates (compared to R1.0):
- new power button (slide switch) controlled by MCU,
- added 2 fan sockets,

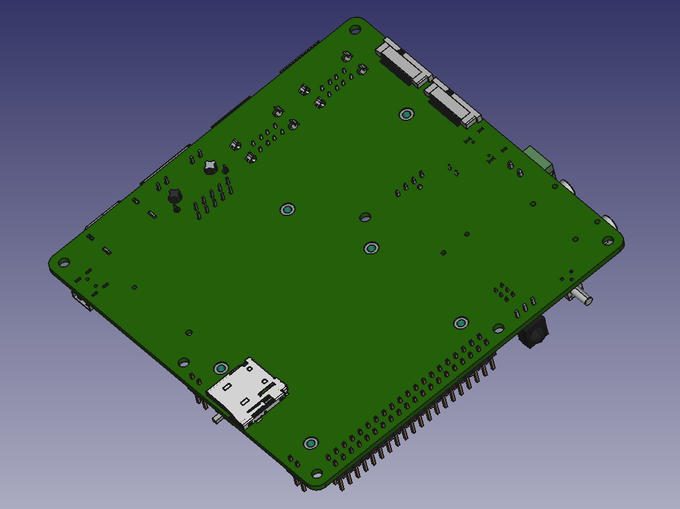

- new microSD slot location,

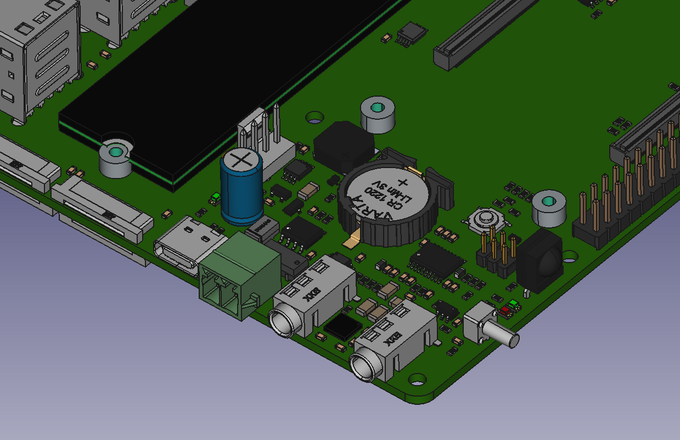

- improved 5V power rail,
- marking.
